In-Depth Analysis of NI USB Series Data Acquisition Devices 2025/ 07/ 01

In the realms of industrial automation and scientific research testing, the performance of data acquisition equipment directly impacts system accuracy and development efficiency. National Instruments’ (NI) USB series data acquisition cards, with their modular design, high-performance specifications, and robust software ecosystem, have become indispensable tools in laboratories and production lines. This article delves into mainstream models such as the USB-7845, USB-6211, and USB-6343.





I. Technical Parameters: Hardware Configurations for Diverse Scenarios

Analog Signal Processing Capabilities

· High-Resolution Sampling: The USB-7845 features a 16-bit analog-to-digital converter (ADC), supporting single-ended/differential mode switching for analog input channels. With a maximum sampling rate of 500 kS/s (kilosamples per second), it captures dynamic signals up to 25 kHz.

· Wide-Range Output: Its analog output channels achieve an update rate of 1 MS/s (megasample per second), covering a ±10V output voltage range. Combined with FPGA programmability, it enables customized waveform generation.

· Multi-Channel Synchronization: The USB-6343 supports 32 single-ended or 16 differential inputs, all sharing a 500 kS/s sampling rate. Leveraging NI-STC3 timing technology, it achieves nanosecond-level synchronization accuracy, ideal for multi-sensor array acquisition.

Digital and Counter Functions

· Bidirectional Digital I/O: The USB-7845 provides 48 TTL/CMOS-compatible digital channels, with programmable logic levels (3.3V/5V) to directly drive relays or read switch signals.

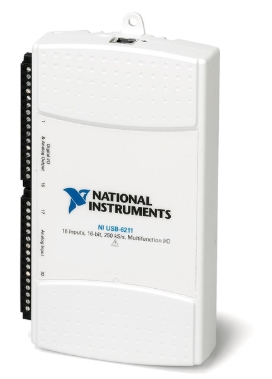

· High-Precision Counters: The USB-6211 integrates two 32-bit counters, supporting a maximum signal frequency of 80 MHz, PWM output, and encoder interfaces, making it suitable for motor control and position feedback systems.

Environmental Adaptability

· Industrial-Grade Protection: The USB-7845 features a sealed metal enclosure, operates within -20°C to 70°C, withstands 50g shocks, and complies with MIL-STD-810G military standards.

· Electromagnetic Compatibility: Certified by CE and FCC, it includes TVS diode clamping protection on analog channels, enduring ±200V electrostatic discharge (ESD).



II. Core Features: FPGA-Enabled Flexible Architecture

User-Programmable FPGA

The USB-7845 incorporates a high-performance FPGA chip, allowing users to implement custom logic via the LabVIEW FPGA module. For instance, in hardware-in-the-loop (HIL) testing, it can build real-time simulation models, seamlessly integrating physical I/O with virtual systems to reduce test cycles by over 60%.

Synchronization and Trigger Systems

· Multi-Device Synchronization: NI-TClk technology enables cross-device sampling clock synchronization with errors below 100ps.

· Complex Trigger Conditions: Supports digital edge triggering, analog window triggering, and external event triggering. The USB-6211 achieves a trigger delay as low as 50ns, suitable for high-speed pulse sequence capture.

Software Ecosystem Integration

· Drivers and APIs: The NI-DAQmx driver provides a unified programming interface supporting LabVIEW, Python, C/C++, and more.

· Advanced Analysis Tools: Paired with LabVIEW’s signal processing toolkit, it enables complex algorithms like FFT spectral analysis and order tracking without additional coding.



III. Typical Application Scenarios

Automated Test Systems

· Case: Automotive Electronic Controller Testing

· Configuration: The USB-7845 handles analog acquisition (e.g., voltage/current monitoring), while the USB-6211 processes digital signals (switch detection). TestStand software automates workflow control.

· Advantages: Replaces traditional multi-instrument setups, increasing test coverage by 40% and reducing fault diagnosis time to one-third of conventional methods.

Hardware-in-the-Loop (HIL) Simulation

· Application: Motor Driver Development

· Implementation: The USB-7845’s FPGA runs a real-time motor model to simulate load changes, while the USB-6343 captures driver output signals for closed-loop control.

· Benefits: Reduces hardware interaction delay by 80% compared to software-only simulations, accelerating controller algorithm validation.

Research-Grade Sensor Acquisition

· Scenario: Bridge Vibration Monitoring

· Solution: The USB-4431 (designed for acoustic/vibration applications) synchronously acquires four accelerometer signals at 102.4 kS/s, combined with IEPE signal conditioning to directly drive piezoelectric sensors.

· Data: Achieves a 100 dB dynamic range and <5μV noise floor, meeting stringent structural health monitoring requirements.

Education and Training Platforms

· Tool: USB-6009 Low-Cost Data Acquisition Card

· Application: Paired with the TLA-004/U6 experimental kit, it supports courses like Sensor Principles and Automatic Control. Students can program virtual oscilloscopes and function generators via LabVIEW.

· Value: Reduces equipment costs by 70% and cuts experiment preparation time to under 10 minutes.



IV. Selection Guide and Future Trends

NI’s USB series now offers a complete product matrix:

· Basic Models: USB-6001/6003 (8 analog inputs, 14-bit resolution, suited for teaching and simple tests)

· Mainstream Models: USB-6211/6251 (16-bit precision, multifunction integration, balancing performance and cost)

· High-Performance Models: USB-7845/6343 (FPGA expansion, multi-channel synchronization, tailored for complex systems)



Product website:

https://www.3splc.com/NI-USB_c0_ss



As Industry 4.0 and AIoT evolve, NI is advancing the USB series toward edge computing. Newer models integrate ARM processors for local data preprocessing and edge decision-making, reducing reliance on host computers. For projects demanding high precision, flexibility, and rapid development, the NI USB series remains a trusted choice.
