KEYENCE FT-50AP Baru dan Asli Kualitas Tinggi

FT-50AP

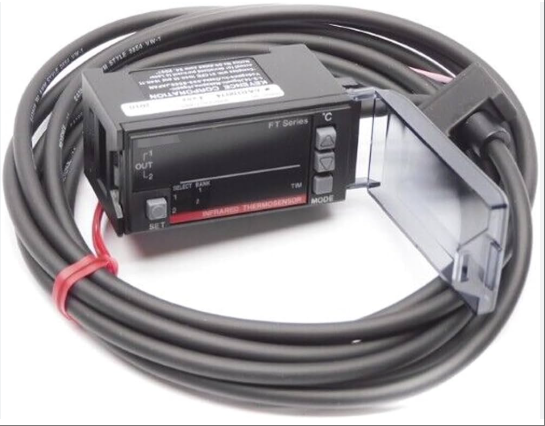

The FT-50AP model product is a high-precision, multifunctional digital infrared temperature sensor amplifier unit designed specifically for industrial automation and precision detection scenarios. Its core parameters cover a wide temperature range of -50 ℃ to 125 ℃, support 1.5V to 9V DC power input, compatible with DIN rail installation, adopt PNP open collector output and 4-20mA analog signal dual channel control, with a maximum load capacity of 50mA/260 Ω, and have dual resolution display accuracy of 0.1 ℃/1 ℃ and high-speed response characteristics of 15ms. The product integrates a dual color LED display screen (red/green character height 8mm/5.7mm), supports HSP/30-5000ms seven speed response speed adjustment, and has 4 sets of built-in memory banks that can independently set radiation rate and limit parameters. The external input interface supports 2ms timing trigger and 20ms memory bank switching. In terms of protection, it has passed IP65 level anti dust and moisture-proof testing, and can operate stably in a non freezing environment from -10 ℃ to+50 ℃, 35% -85% RH humidity, and 10-55Hz/1.5mm three-axis anti vibration conditions. The main unit adopts a polycarbonate shell and polyester elastic keycap, with a total weight of only about 85g, suitable for fields such as semiconductor manufacturing, precision machining, medical equipment temperature control, etc. that require strict temperature monitoring accuracy and anti-interference ability.

Technical specifcations for FT-50AP

Basic electrical parameters

Power specifications: Supports 12V to 24V DC wide range power input, with a maximum allowable ripple (P-P) of 10%, in compliance with Class 2 or LPS safety standards.

Power consumption control: In normal operating mode, the power consumption is 1400mW (12V)/1600mW (24V), and in economy mode, it can be reduced to 1150mW (12V)/1350mW (24V).

Load capacity: Equipped with dual channel PNP open collector output (N.O./N.C. optional), maximum load current of 50mA (30V DC), residual voltage ≤ 1V.

2、 Display and interaction parameters

Display system: It adopts a 4+1/two 7-segment LED dual color display screen (red/green), with red characters at a height of 8mm and green characters at a height of 5.7mm, and a display update cycle of 10 times/second.

Resolution setting: Supports two display resolutions of 0.1 ℃ or 1 ℃ (when using H10/H20/H30), or a fixed 1 ℃ resolution (when using H50/H40K/H50K).

Status indication: Integrated with 3 red LED working indicator lights, corresponding to control output 1, control output 2, and timing input status respectively.

3、 Response and storage parameters

Response speed: Provides seven adjustment options including HSP, 30ms, 100ms, 200ms, 500ms, 1000ms, and 5000ms. The fastest response time in HSP mode is ≤ 15ms.

Storage configuration: Supports 4 independent storage banks, each group can be individually set with radiation rate (temperature mode is effective) and dual limit parameters.

Respons masukan: Waktu respons minimum untuk masukan pengaturan waktu eksternal adalah 2 ms, dan waktu respons minimum untuk masukan pengalihan penyimpanan adalah 20 ms.

4、 Simulasikan parameter keluaran

Jangkauan keluaran: Menyediakan keluaran sinyal analog 4-20mA, resistansi beban maksimum 260 Ω, mendukung pengaturan khusus batas atas dan bawah.

5、 Parameter adaptasi lingkungan

Suhu dan kelembapan kerja: Kisaran suhu sekitar -10 ℃ hingga +50 ℃ (tanpa titik beku), dan kelembapan relatif 35% -85% (tanpa kondensasi). Batas atas suhu sekitar saat menggunakan keluaran analog adalah +45 ℃.

Kinerja seismik: Lulus uji antigetar tiga sumbu X/Y/Z dengan 10-55Hz dan amplitudo ganda 1,5mm, dan dioperasikan terus menerus selama 2 jam tanpa kesalahan apa pun.

6、 Parameter struktur dan perlindungan

Tingkat perlindungan: Perlindungan keseluruhan memenuhi standar IP65 dan memiliki kemampuan untuk mencegah debu dan kelembapan.

Komposisi material: Unit utama dan penutup terbuat dari bahan polikarbonat, penutup tombol terbuat dari elastomer poliester, kabel terbuat dari vinil klorida, dan braket pemasangan terbuat dari bahan SPCC.

Spesifikasi fisik: Produk ini beratnya sekitar 85g dan dilengkapi standar dengan perlengkapan rel DIN, kabel daya, dan label penutup amplifier.
